RMS Noise to DC Converter – RMS Noise Measurement

Rajkumar Sharma
49 Views
easy
Tested
SKU: EL148470
Quote Now
0 Likes

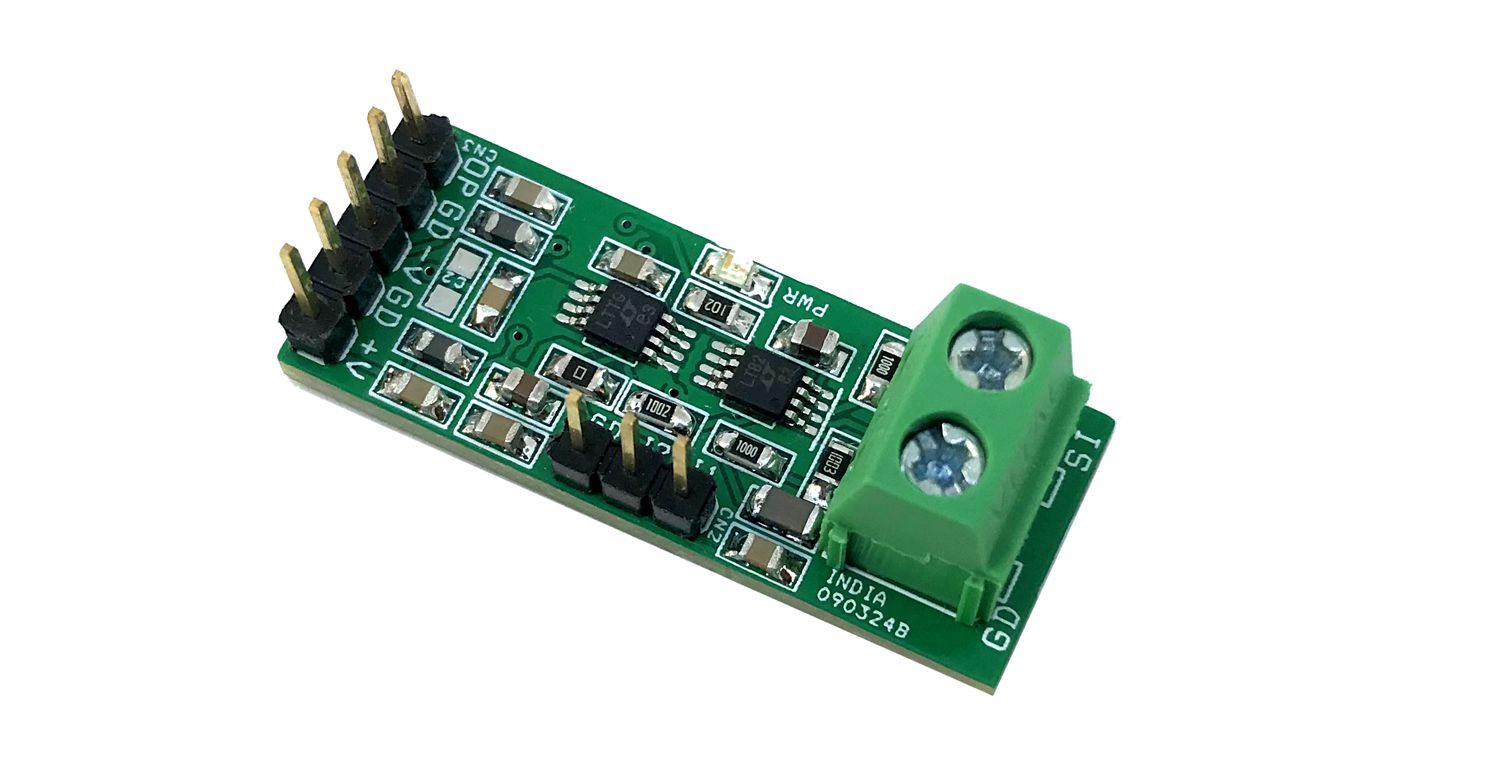

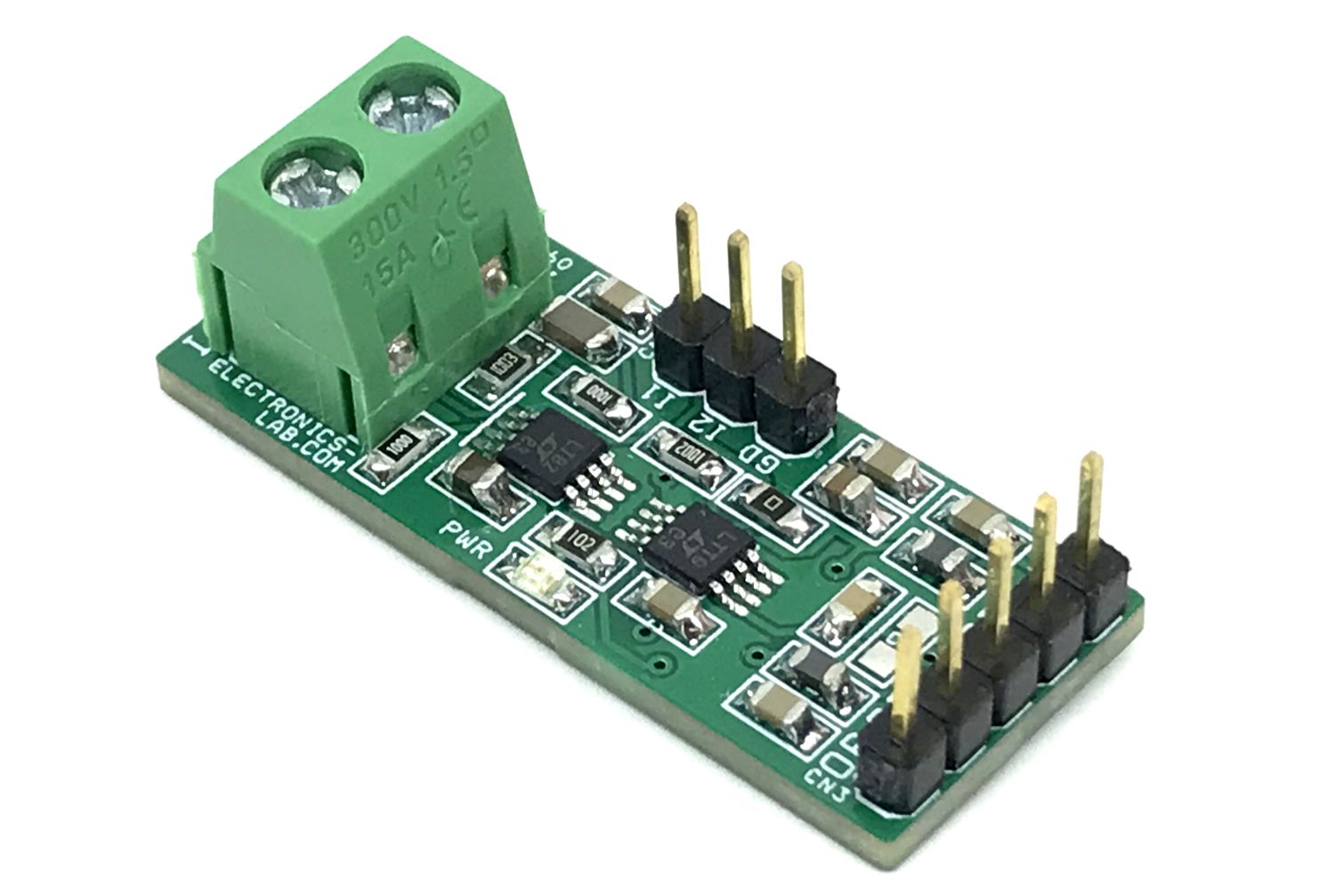

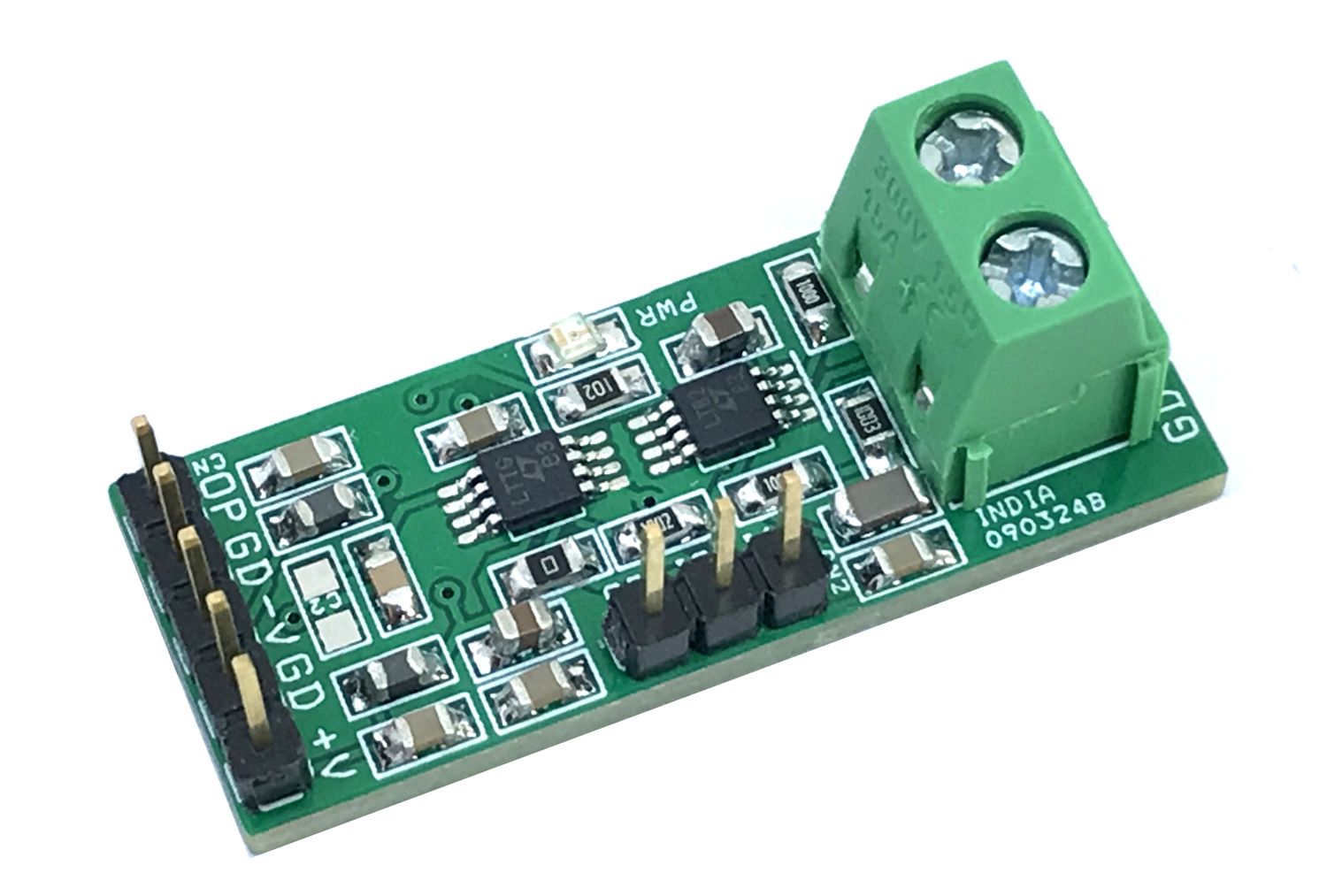

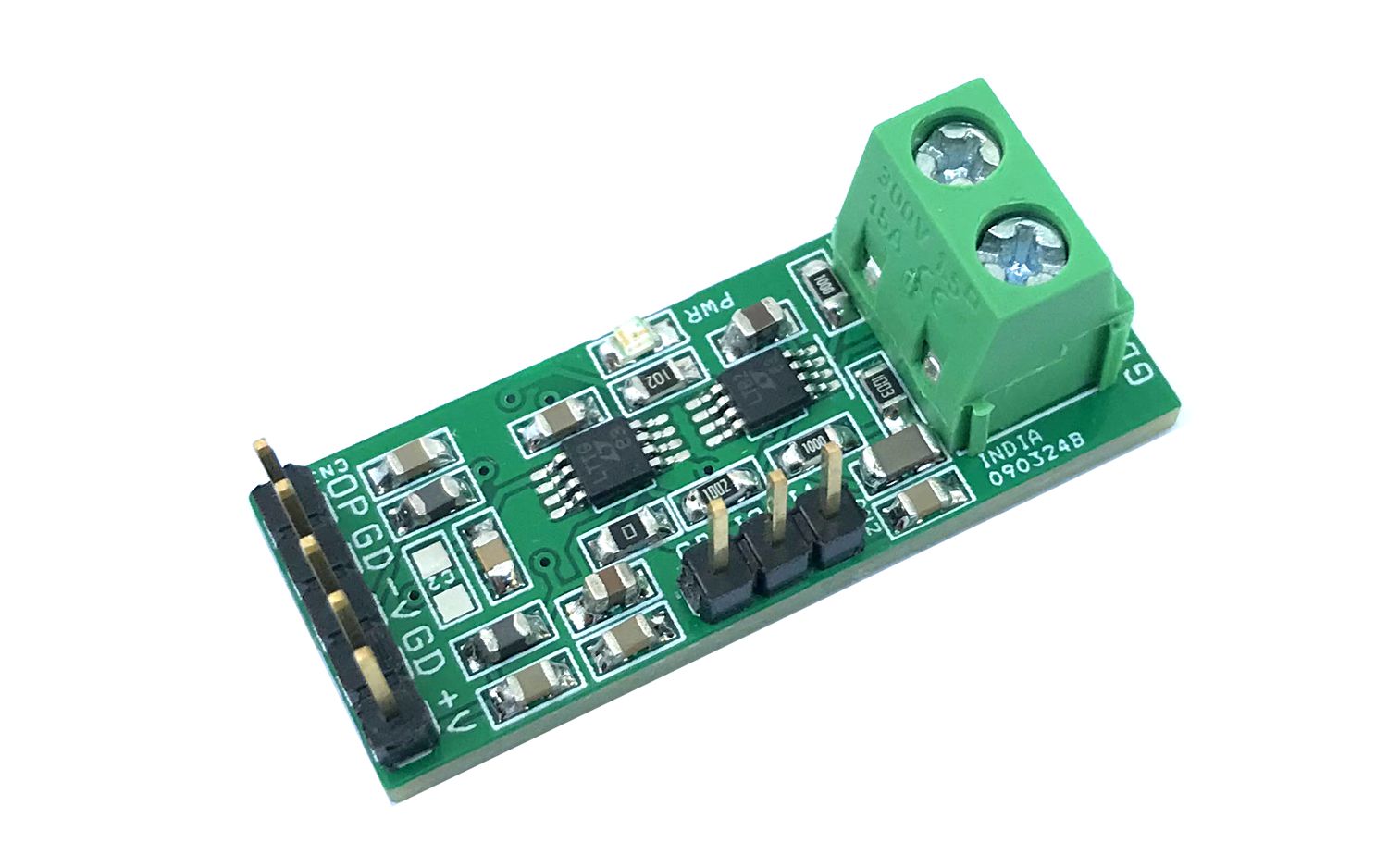

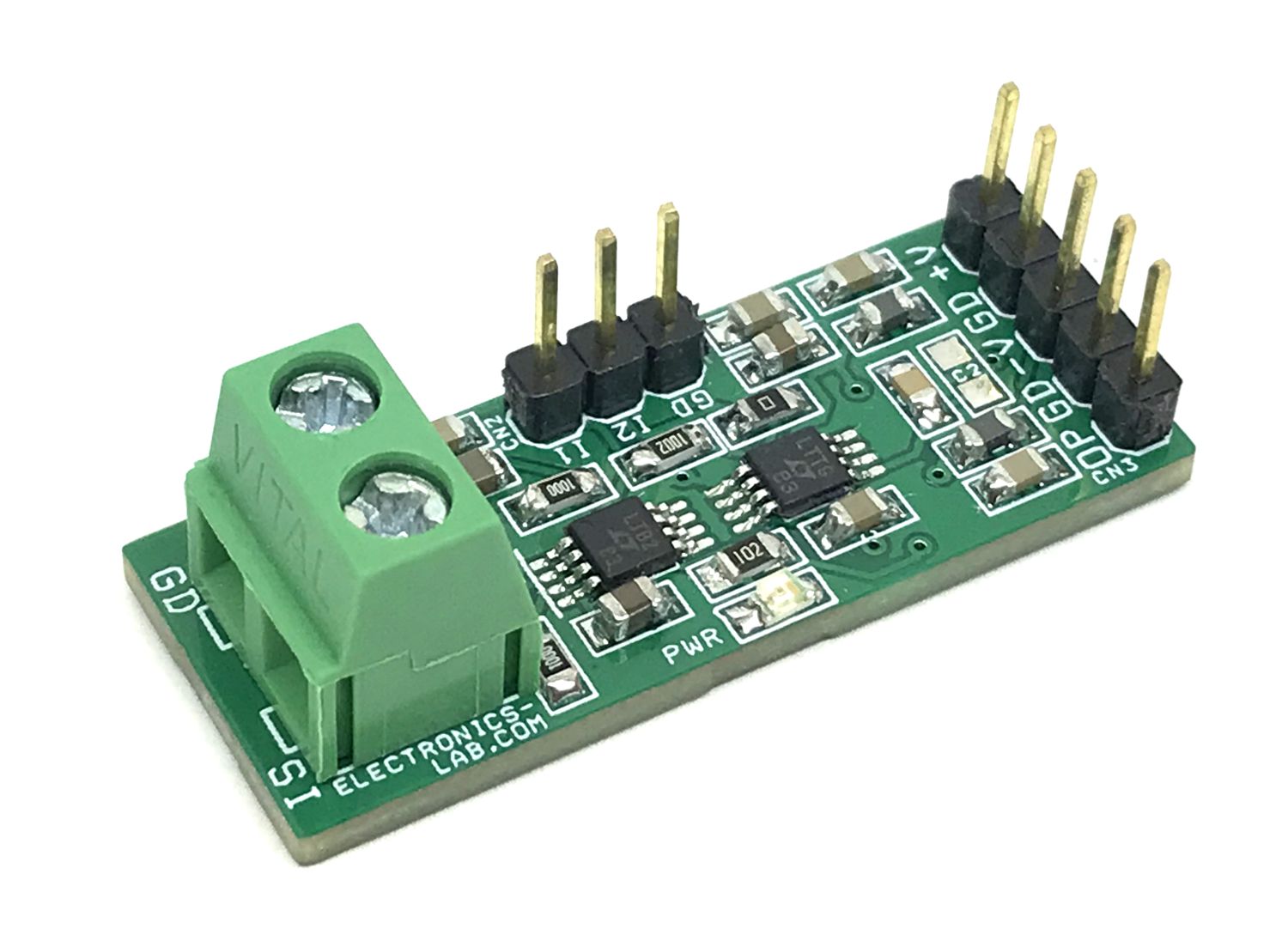

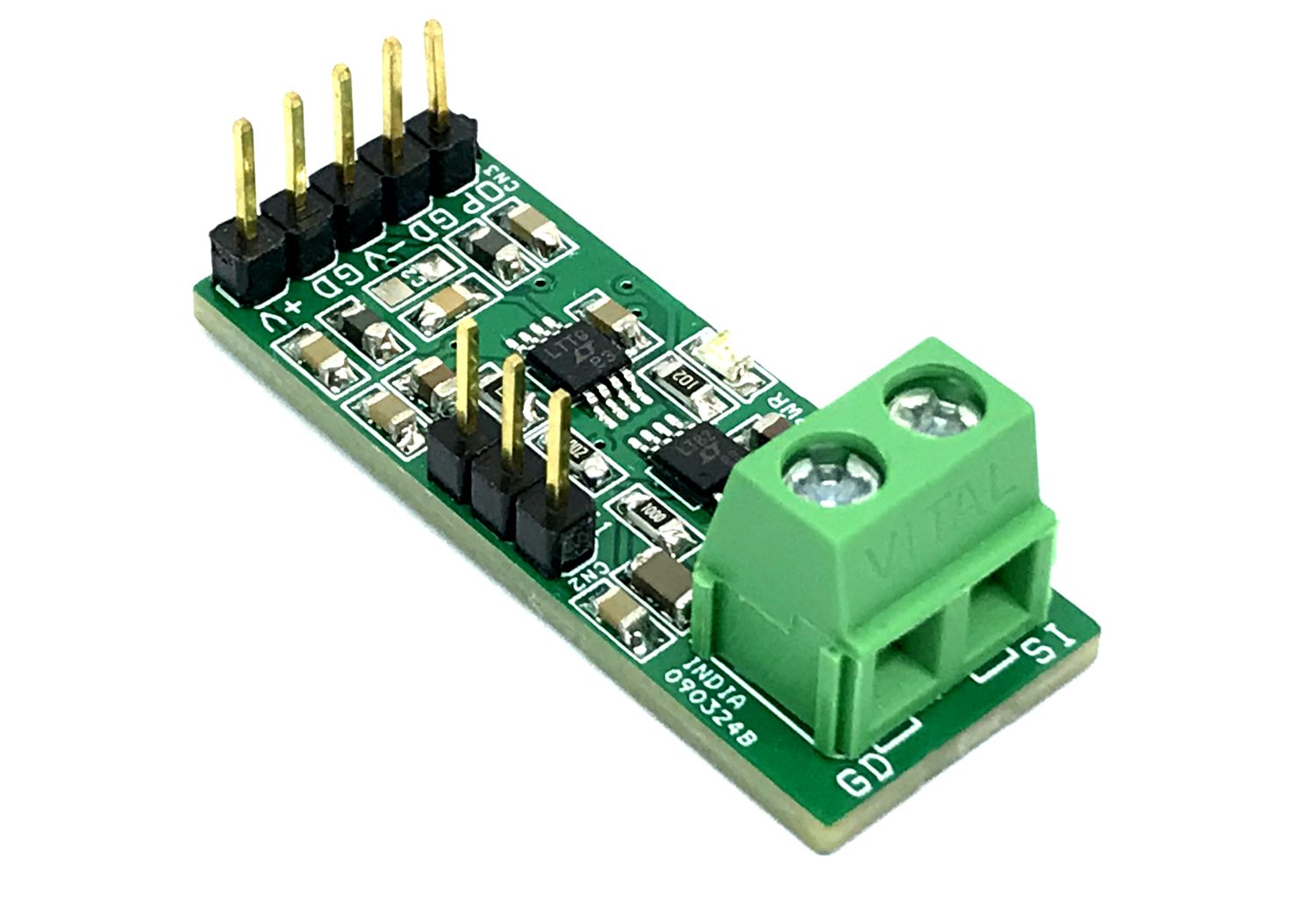

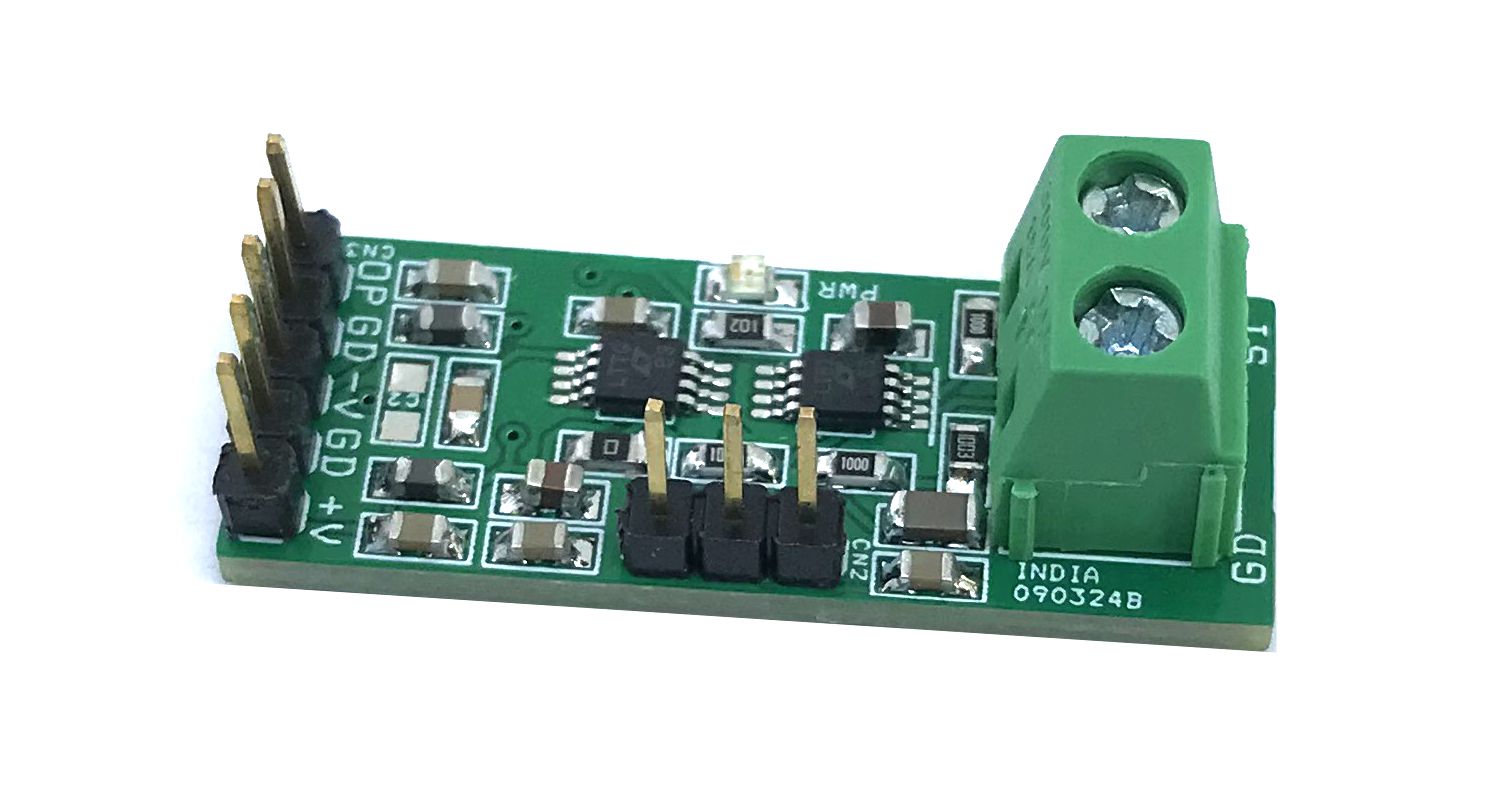

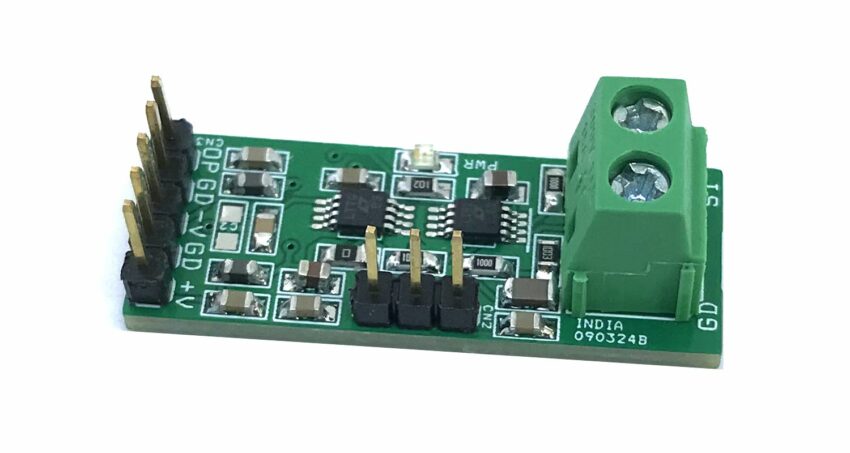

This mini-module helps users to measure the RMS noise of AC signal. Apply the AC noise signal to the input and the circuit outputs a DC voltage. Signal bandwidth is 1Khz to 100Khz and input sensitivity is 1 μVolt RMS. The LT6203 ultra-low noise, low power op-amp amplifies the low-level signal. Further, this signal is converted into a DC voltage by LTC1966 True RMS converter chip from Analog Devices. The circuit works with dual supply +/-5V DC and consumes very low current.

V_Output = 1mV_DC/1μVolt RMS Noise

Credits: Schematic is from Analog Devices Application note.

Features

Supply Dual 5V DC (+/-5V DC)
Input Sensitivity 1 Microvolt RMS Type

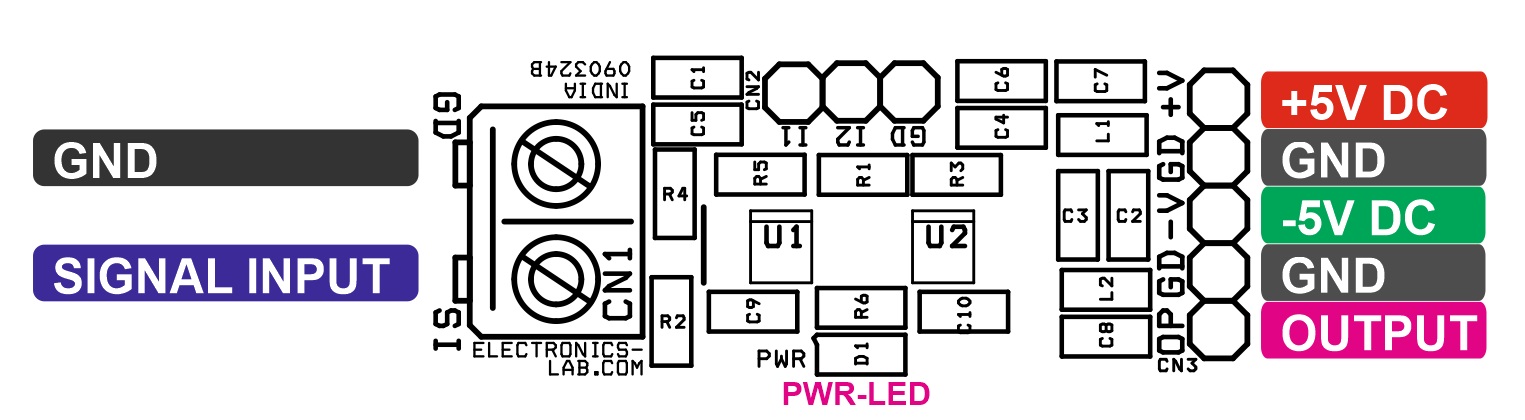

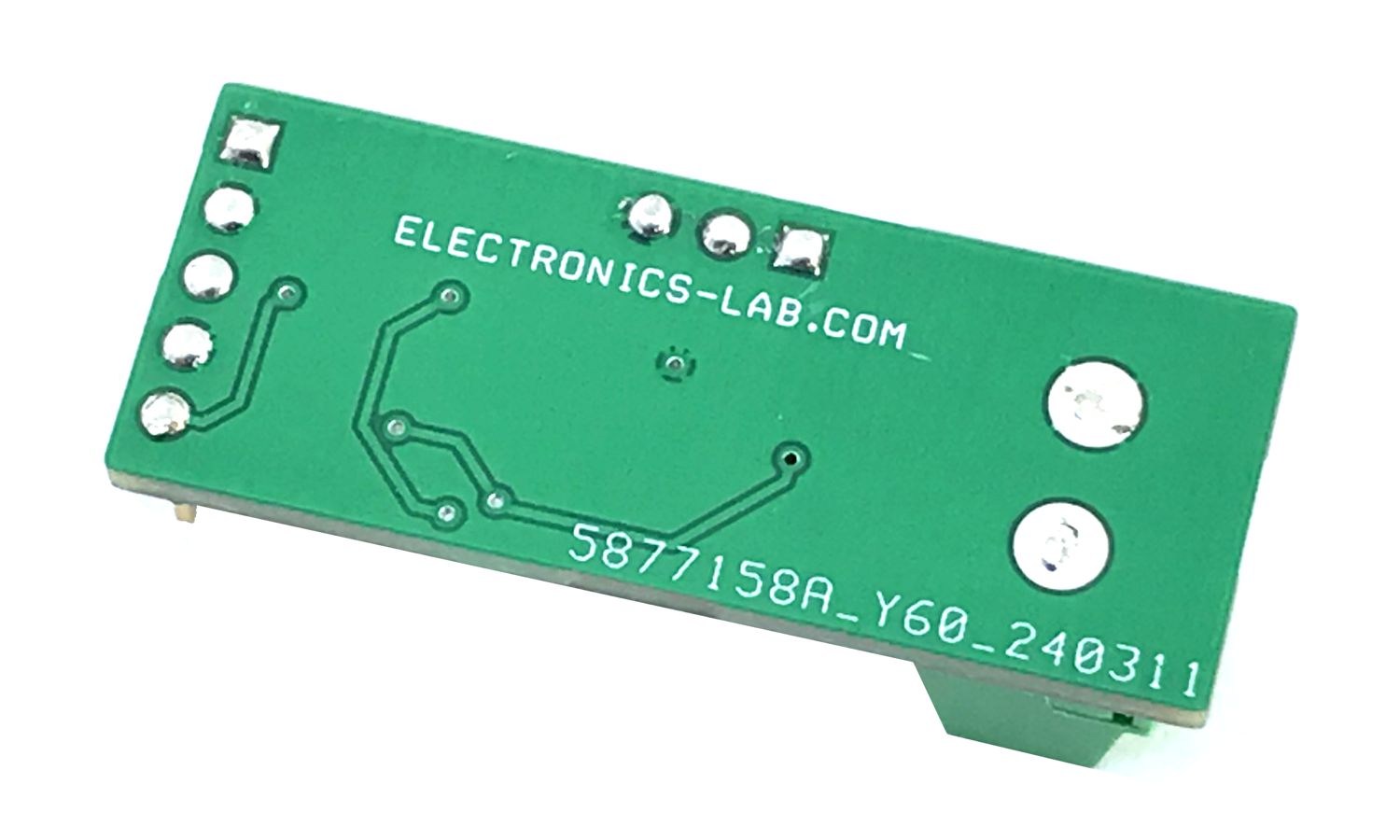

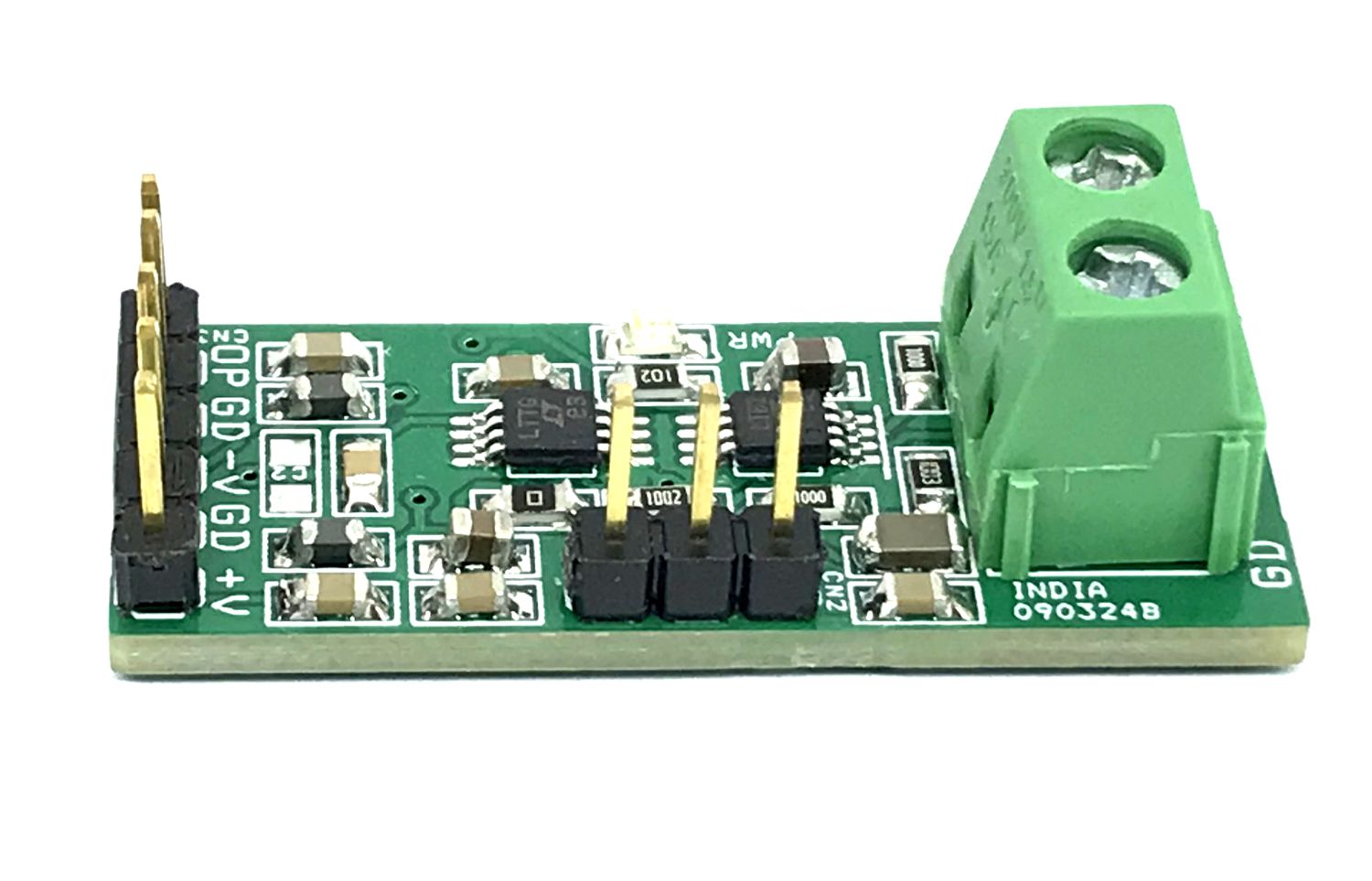

Screw Terminal Connector for Input Signal
Header Connector for Output and Power Input
On Board Power LED

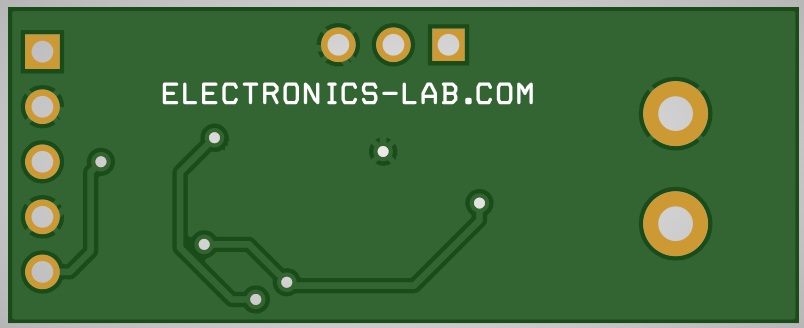

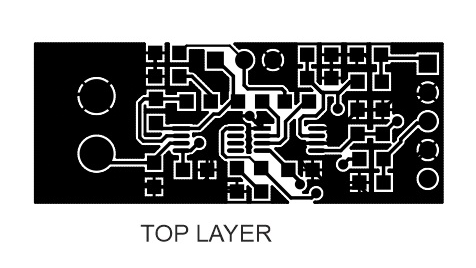

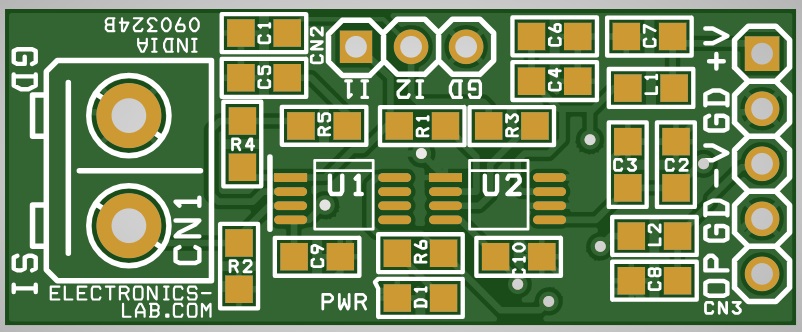

PCB Dimensions 36.51 x 14.61mm

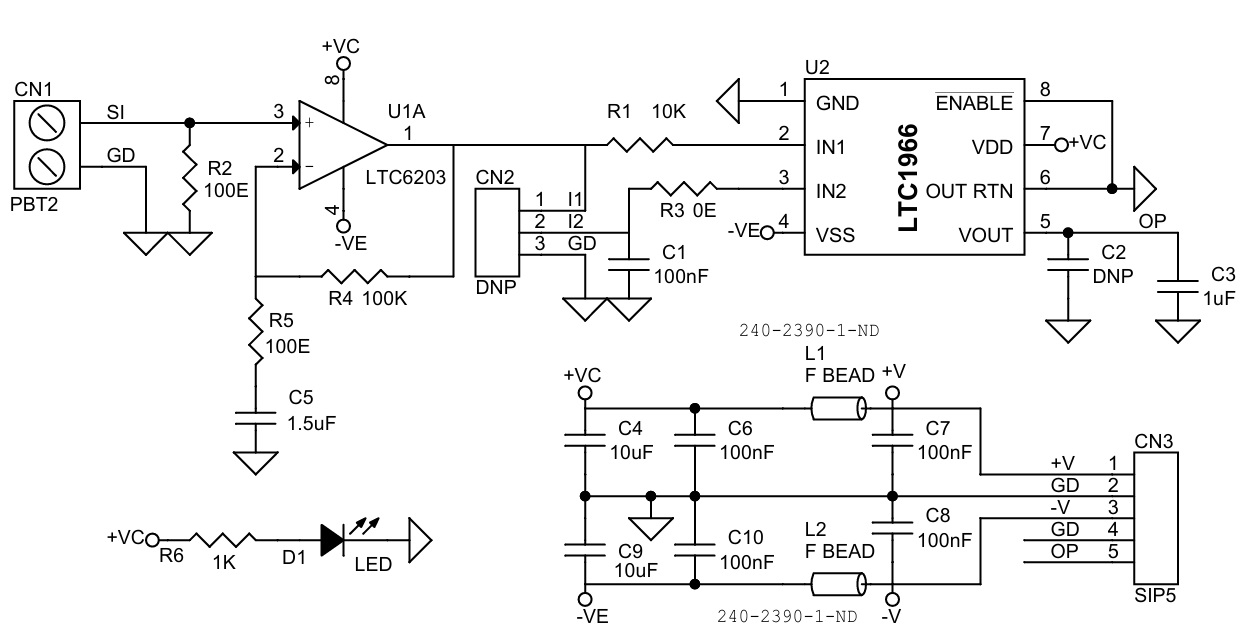

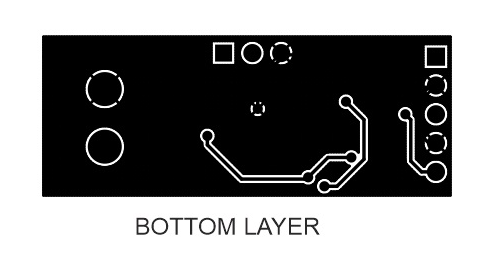

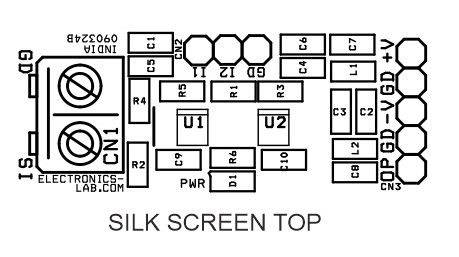

Schematic

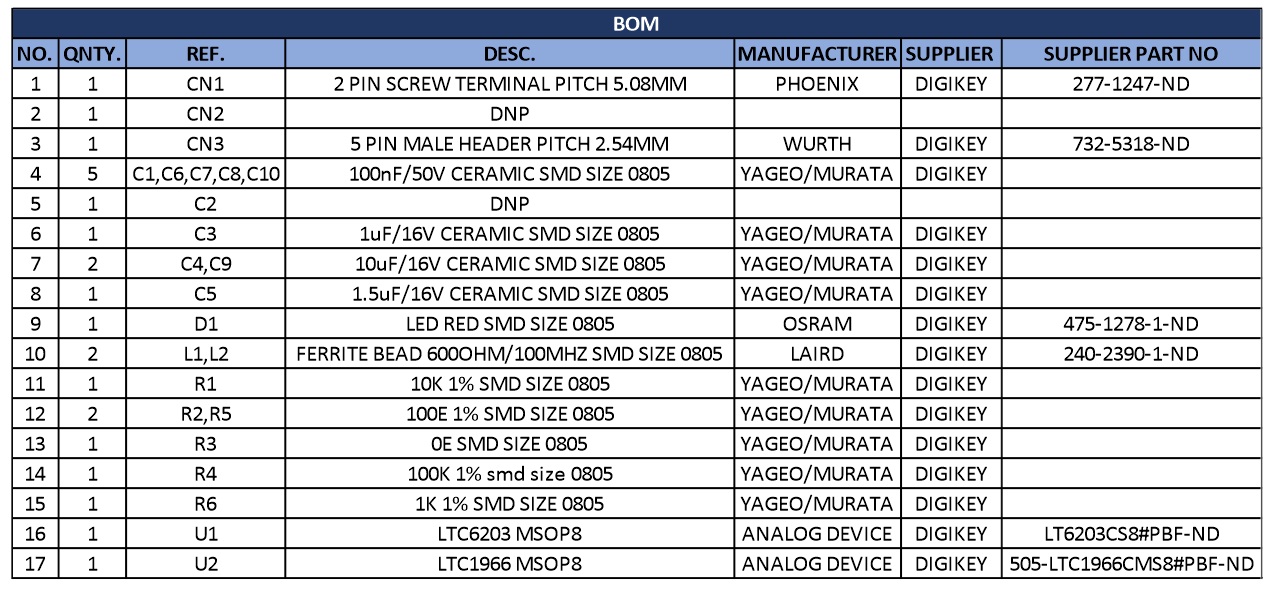

Parts List

NO.	QNTY.	REF.	DESC.	MANUFACTURER	SUPPLIER	SUPPLIER PART NO
1	1	CN1	2 PIN SCREW TERMINAL PITCH 5.08MM	PHOENIX	DIGIKEY	277-1247-ND
2	1	CN2	DNP
3	1	CN3	5 PIN MALE HEADER PITCH 2.54MM	WURTH	DIGIKEY	732-5318-ND
4	5	C1,C6,C7,C8,C10	100nF/50V CERAMIC SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
5	1	C2	DNP
6	1	C3	1uF/16V CERAMIC SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
7	2	C4,C9	10uF/16V CERAMIC SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
8	1	C5	1.5uF/16V CERAMIC SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
9	1	D1	LED RED SMD SIZE 0805	OSRAM	DIGIKEY	475-1278-1-ND
10	2	L1,L2	FERRITE BEAD 600OHM/100MHZ SMD SIZE 0805	LAIRD	DIGIKEY	240-2390-1-ND
11	1	R1	10K 1% SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
12	2	R2,R5	100E 1% SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
13	1	R3	0E SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
14	1	R4	100K 1% smd size 0805	YAGEO/MURATA	DIGIKEY
15	1	R6	1K 1% SMD SIZE 0805	YAGEO/MURATA	DIGIKEY
16	1	U1	LTC6203 MSOP8	ANALOG DEVICE	DIGIKEY	LT6203CS8#PBF-ND
17	1	U2	LTC1966 MSOP8	ANALOG DEVICE	DIGIKEY	505-LTC1966CMS8#PBF-ND
