4 Digit MultiPlexed 0.33 Inch 7 Segment Common Anode Display

  • Rajkumar Sharma
  • 9.743 Views
  • easy
  • Tested
  • SKU: EL52029
  • Quote Now

4-digit-0-33-inch-multiplex-display3

7 Seven segment multi-plexed display is tiny board that has been designed around Common Anode 4 digit Display, Display has 12 Pins. The board is provided with current limiting resistors on all LED segments and 4 PNP Transistors to drive 4 digits, the project is ideal for easy micro-controller interface with 13 pin Header connector. The Board supports 3.3V as well 5V TTL interface.

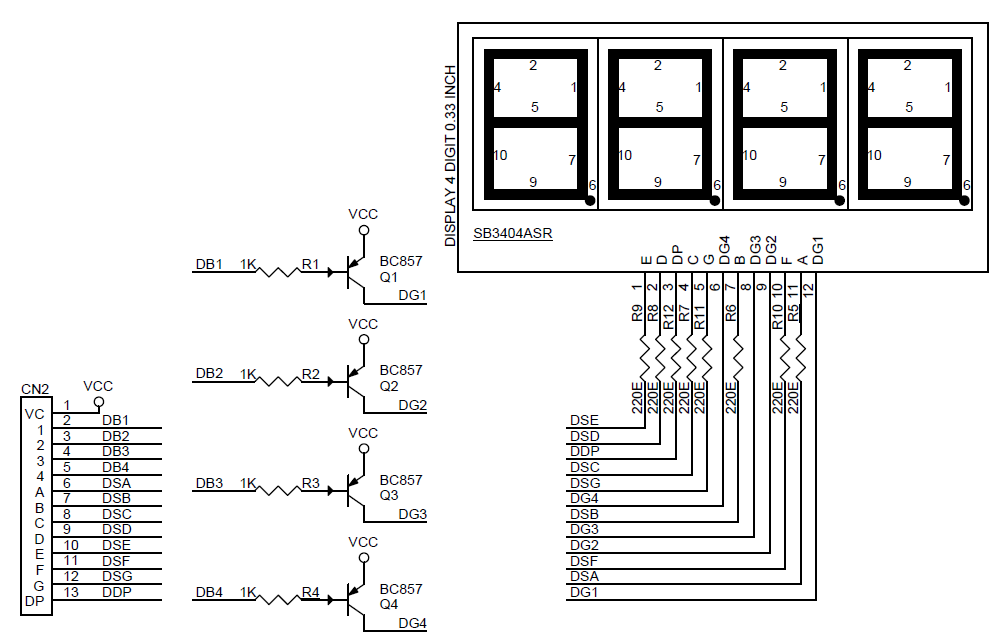

Schematic

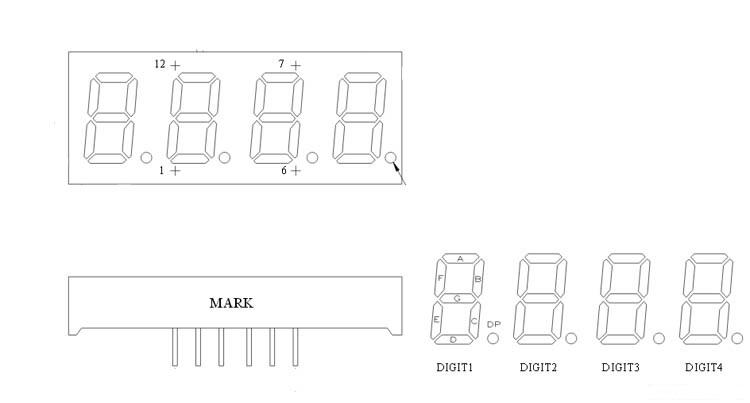

4-digit-0-33-inch-multiplex-display1

4-digit-0-33-inch-multiplex-display

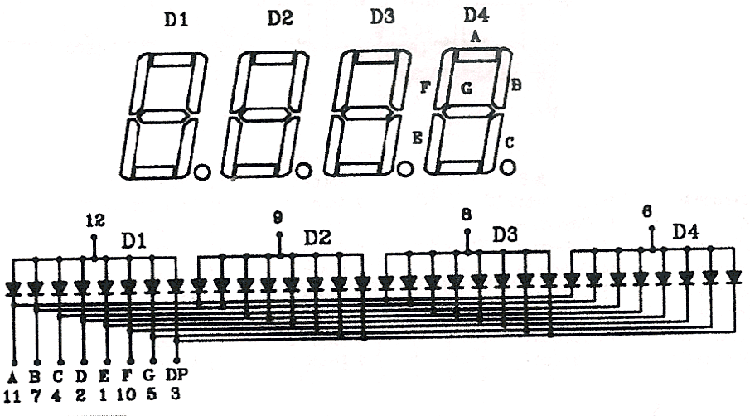

4-digit-0-33-inch-multiplex-display4

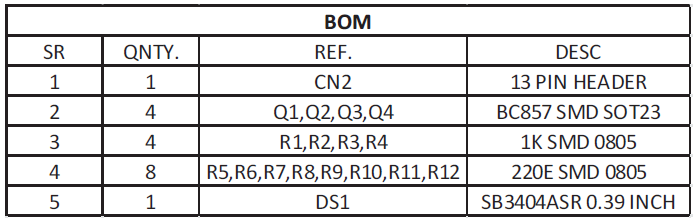

Parts List

4-digit-0-33-inch-multiplex-display3

Photos

4-digit-0-33-inch-multiplex-display

Please follow and like us:
fb-share-icon
Tweet
Pin Share

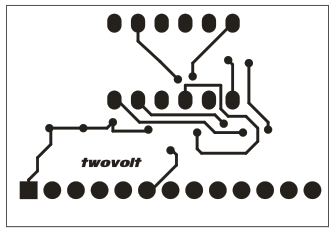

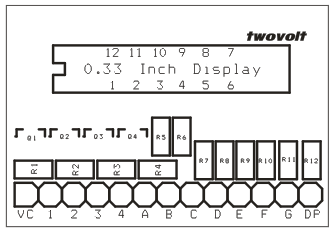

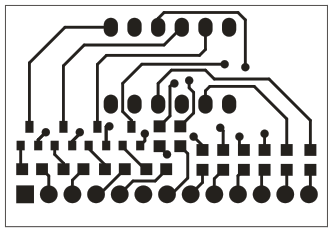

PCB
