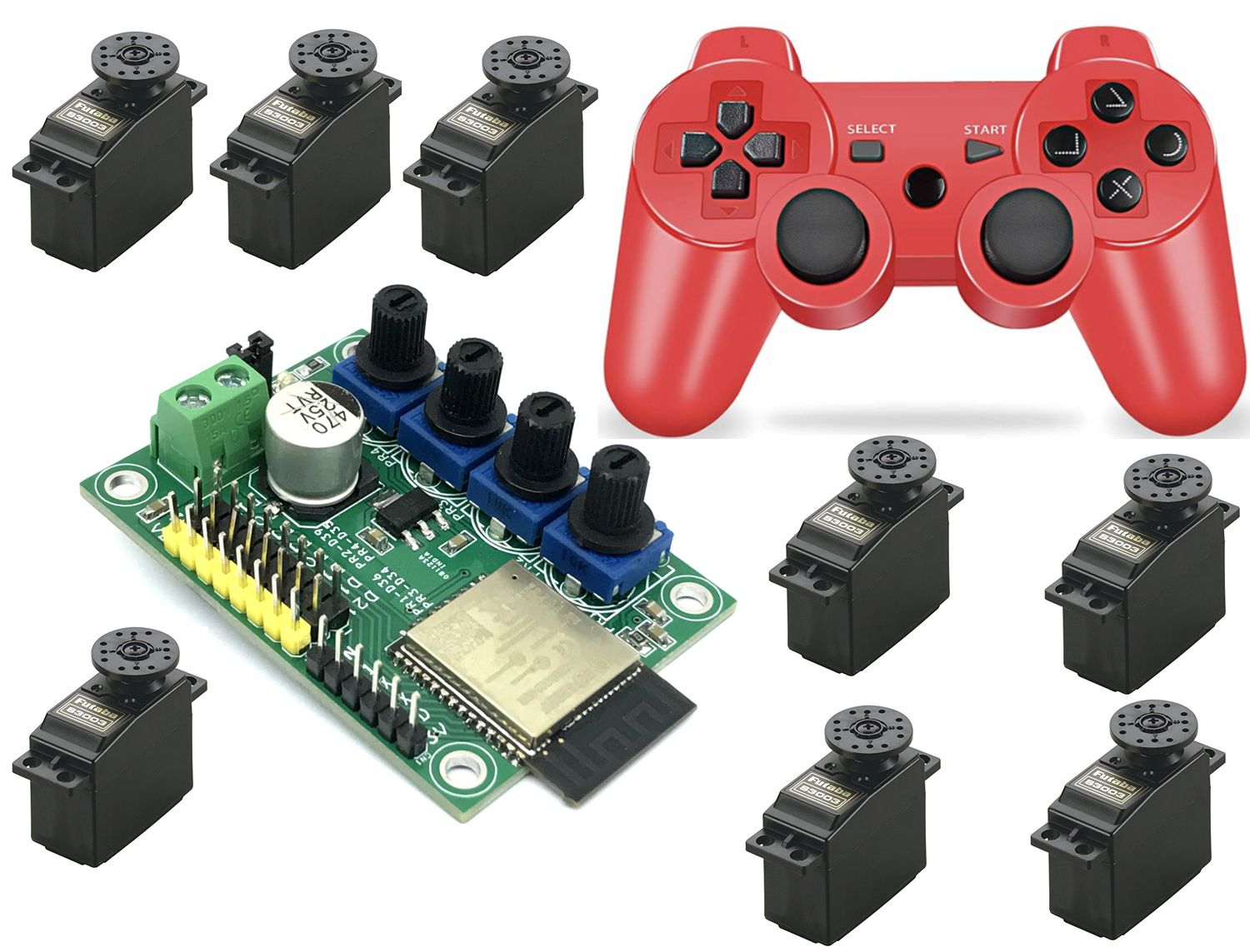

Robotics Arm Controller using PS3 Wireless Remote
- Rajkumar Sharma
- 125 Views
- moderate
- Tested
- SKU: EL144188
- Quote Now
- 1 Likes
This project enables the user to control an RC servo-based robotics arm wirelessly. The board is based on ESP32-WROOM 32E Bluetooth/Wi-Fi module, thus PS3 or PS4 wireless remote can be paired. The project is built using ESP32 chip with Bluetooth and Wi-Fi connectivity, 4 potentiometers connected to analog pins, 8 x 3 pin header connectors for easy interface of RC servos, operating power supply range 4.8V to 6V DC, LM1117-3.3V U1 regulator provides 3.3V to ESP32 processor, DC supply capacitor C5 helps smooth operations of RC servos, use a shunt to close the jumper J1.
ESP32 can be programmed using ARDUNO IDE. Example code provided to test the project. The user will be able to drive one RC Servo connected to the GPIO15 pin of ESP32. Use the right-hand side joystick of PS3 to perform movement of the RC Servo. more details about the ESP32 and PS3 interface are available here:
https://dronebotworkshop.com/ps3-esp32/
Hardware Details
- ESP32-WROOM 32E Module
- 8 x 3 Pin Connectors for RC Servos (Can be used as I/O for other applications)
- 4 x Trimmer Potentiometer connected to Analog Pins
- Power LED
- 3V Regulator
- Programming Connector for ES32
- High Value Capacitor C5 on DC bus for smooth operation of Servo
- Screw Terminal for DC Power Supply (4.8V to 6V)
- Jumper for Internal or External 3.3V Power Selection for ESP32
Features
- Operating Power Supply 4.8V to 6V
- 8 RC Servo Interface
- 4 X Potentiometers
- On Board Power LED
- 4 x 3 mm Mounting Holes
- PCB Dimensions 57.15 x 40.96 mm
Applications
- 8 Channel RC Servo Driver
- 8 Channel RC Servo Driver Using Bluetooth
- 8 Channel RC Servo Driver Over Wi-Fi Network
- 4 Channel RC Servo Driver Using 4 On Board Trimmer Potentiometer
- 8 Channel RC Servo driver Using PS3 Remote
- RC Servo Based Robotics Arm Controller
- Robotics
- 8 RC Controller Using Bluetooth Smart-Phone/Laptop/Tab
Connection
- CN1: Pin 1 = 3.3V, Pin 2 = GND, Pin 3 = TX, Pin 4 = RX, Pin 5 = D0, Pin 6 = Enable (ESP32 Programming)
- CN2=GPIO21, CN4=GPIO19, CN7=GPIO17, CN8=GPIO16, CN5=GPIO18, CN6=GPIO05, CN9=GPIO04, CN10=GPIO15: (Pin 1 = RC Signal/IO, Pin 2 = VDD 4.8V-6V, Pin 3 = GND)
- CN3: Pin 1 VDD 4.8V to 6V Power Input, Pin 2 = GND
- D1: Power LED
- Trimmer Potentiometer PR1 = GPIO36/ESP32, PR2 = GPIO39/ESP32, PR3 = GPIO34/ESP32, PR4 = GPIO35/ESP32
- JUMPER J1 = Internal or External 3.3V Power Selection for ESP32

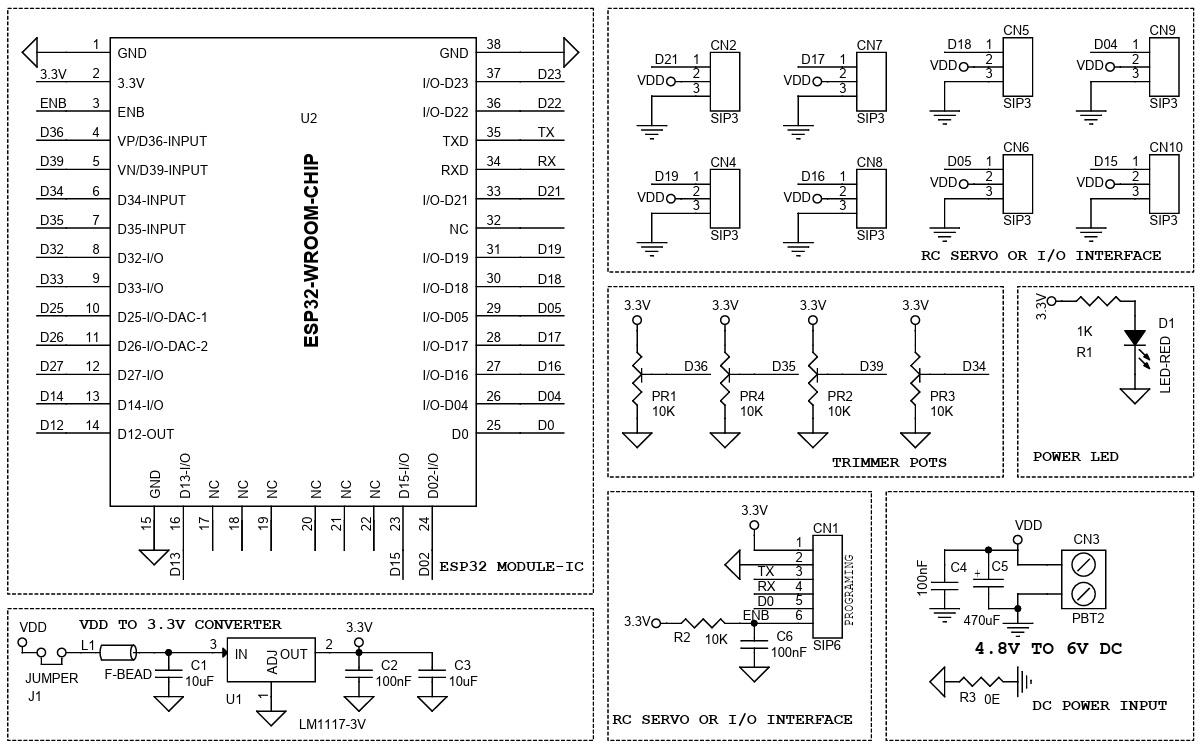

Schematic

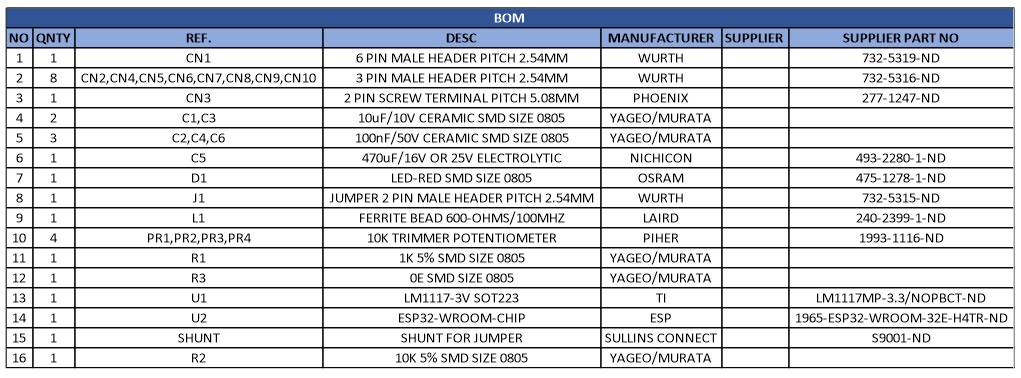

Parts List
| NO | QNTY | REF. | DESC | MANUFACTURER | SUPPLIER | SUPPLIER PART NO |
|---|---|---|---|---|---|---|
| 1 | 1 | CN1 | 6 PIN MALE HEADER PITCH 2.54MM | WURTH | 732-5319-ND | |
| 2 | 8 | CN2,CN4,CN5,CN6,CN7,CN8,CN9,CN10 | 3 PIN MALE HEADER PITCH 2.54MM | WURTH | 732-5316-ND | |
| 3 | 1 | CN3 | 2 PIN SCREW TERMINAL PITCH 5.08MM | PHOENIX | 277-1247-ND | |
| 4 | 2 | C1,C3 | 10uF/10V CERAMIC SMD SIZE 0805 | YAGEO/MURATA | ||
| 5 | 3 | C2,C4,C6 | 100nF/50V CERAMIC SMD SIZE 0805 | YAGEO/MURATA | ||
| 6 | 1 | C5 | 470uF/16V OR 25V ELECTROLYTIC | NICHICON | 493-2280-1-ND | |
| 7 | 1 | D1 | LED-RED SMD SIZE 0805 | OSRAM | 475-1278-1-ND | |
| 8 | 1 | J1 | JUMPER 2 PIN MALE HEADER PITCH 2.54MM | WURTH | 732-5315-ND | |
| 9 | 1 | L1 | FERRITE BEAD 600-OHMS/100MHZ | LAIRD | 240-2399-1-ND | |
| 10 | 4 | PR1,PR2,PR3,PR4 | 10K TRIMMER POTENTIOMETER | PIHER | 1993-1116-ND | |
| 11 | 1 | R1 | 1K 5% SMD SIZE 0805 | YAGEO/MURATA | ||
| 12 | 1 | R3 | 0E SMD SIZE 0805 | YAGEO/MURATA | ||
| 13 | 1 | U1 | LM1117-3V SOT223 | TI | LM1117MP-3.3/NOPBCT-ND | |
| 14 | 1 | U2 | ESP32-WROOM-CHIP | ESP | 1965-ESP32-WROOM-32E-H4TR-ND | |
| 15 | 1 | SHUNT | SHUNT FOR JUMPER | SULLINS CONNECT | S9001-ND | |
| 16 | 1 | R2 | 10K 5% SMD SIZE 0805 | YAGEO/MURATA |

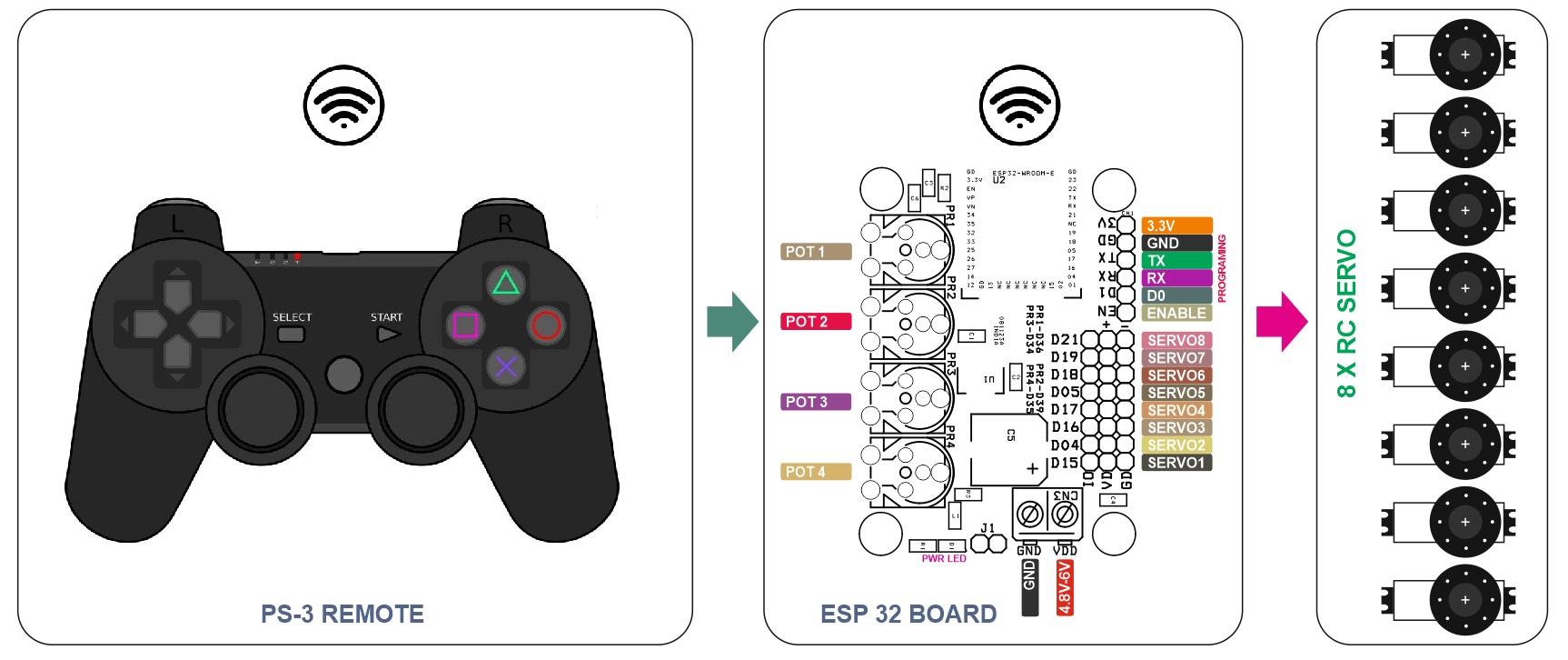

Connections

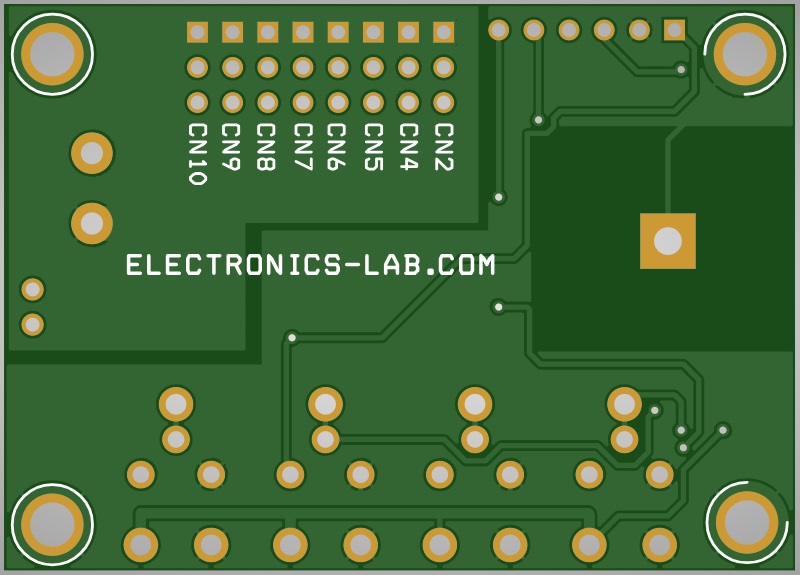

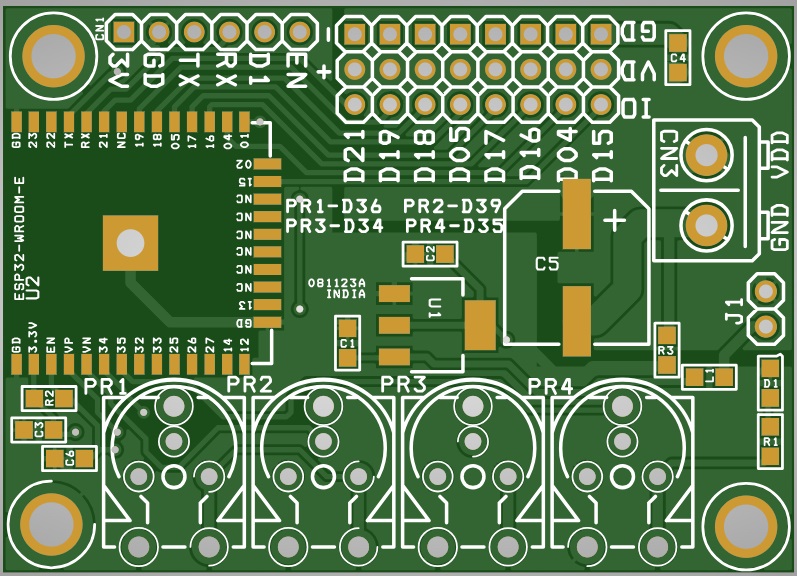

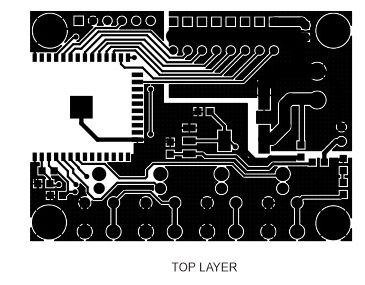

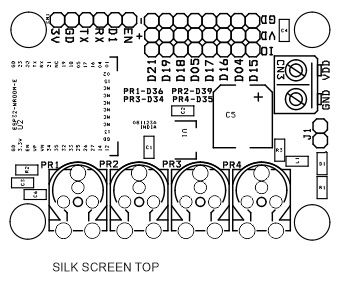

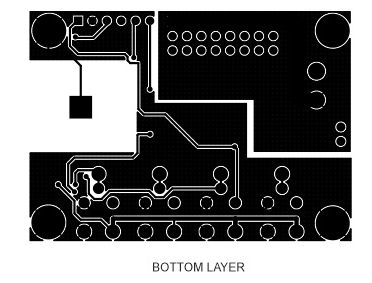

Gerber View

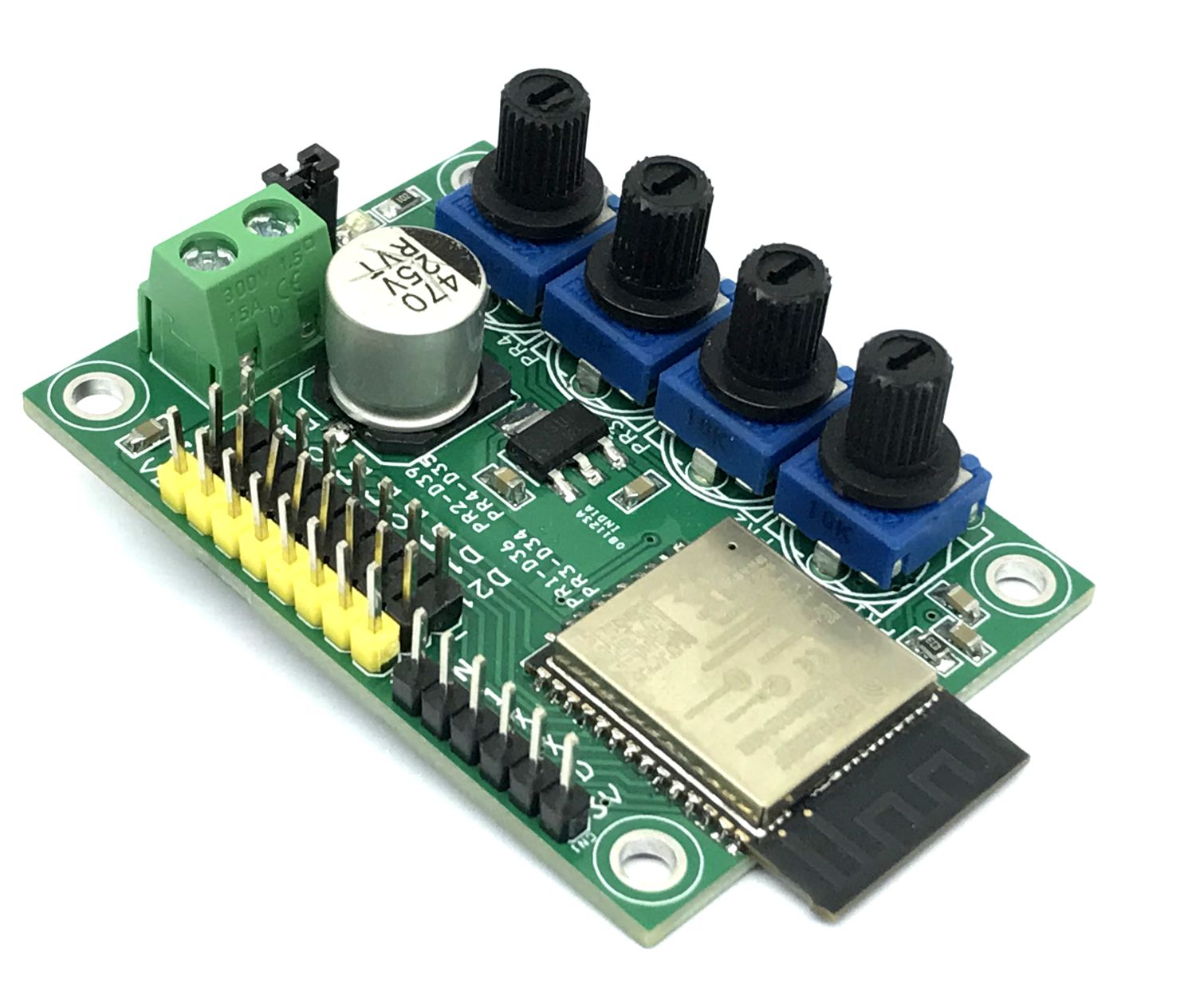

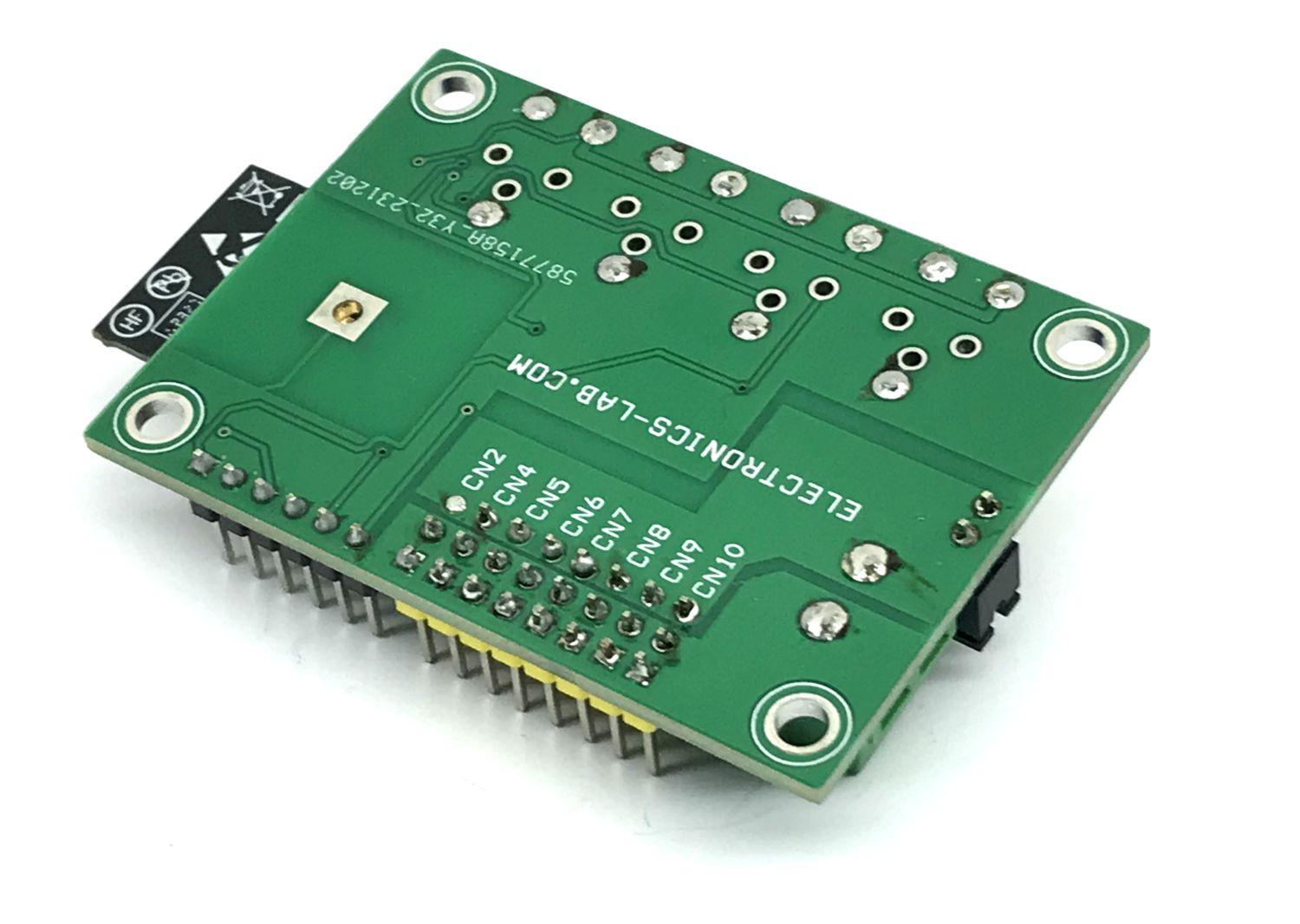

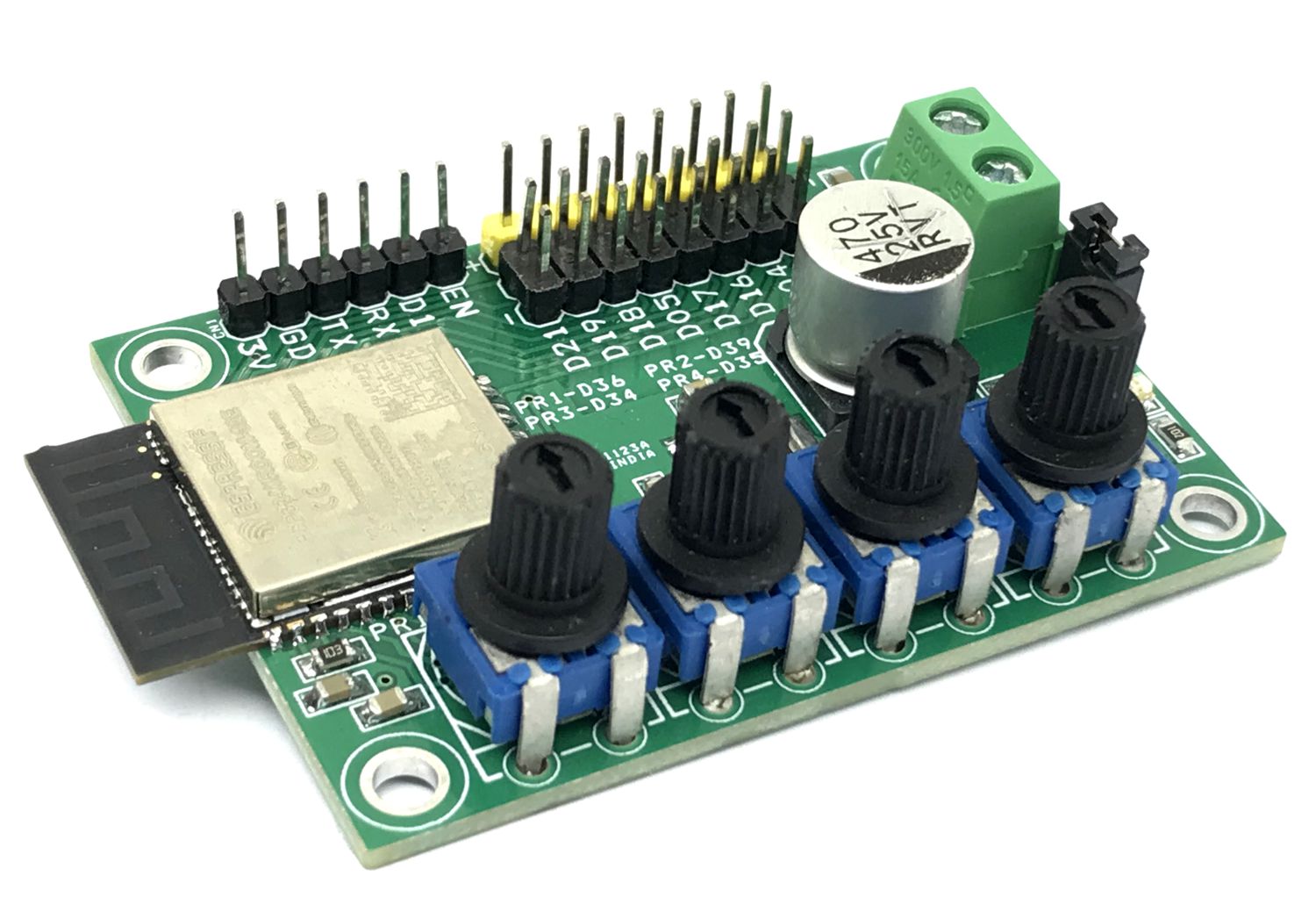

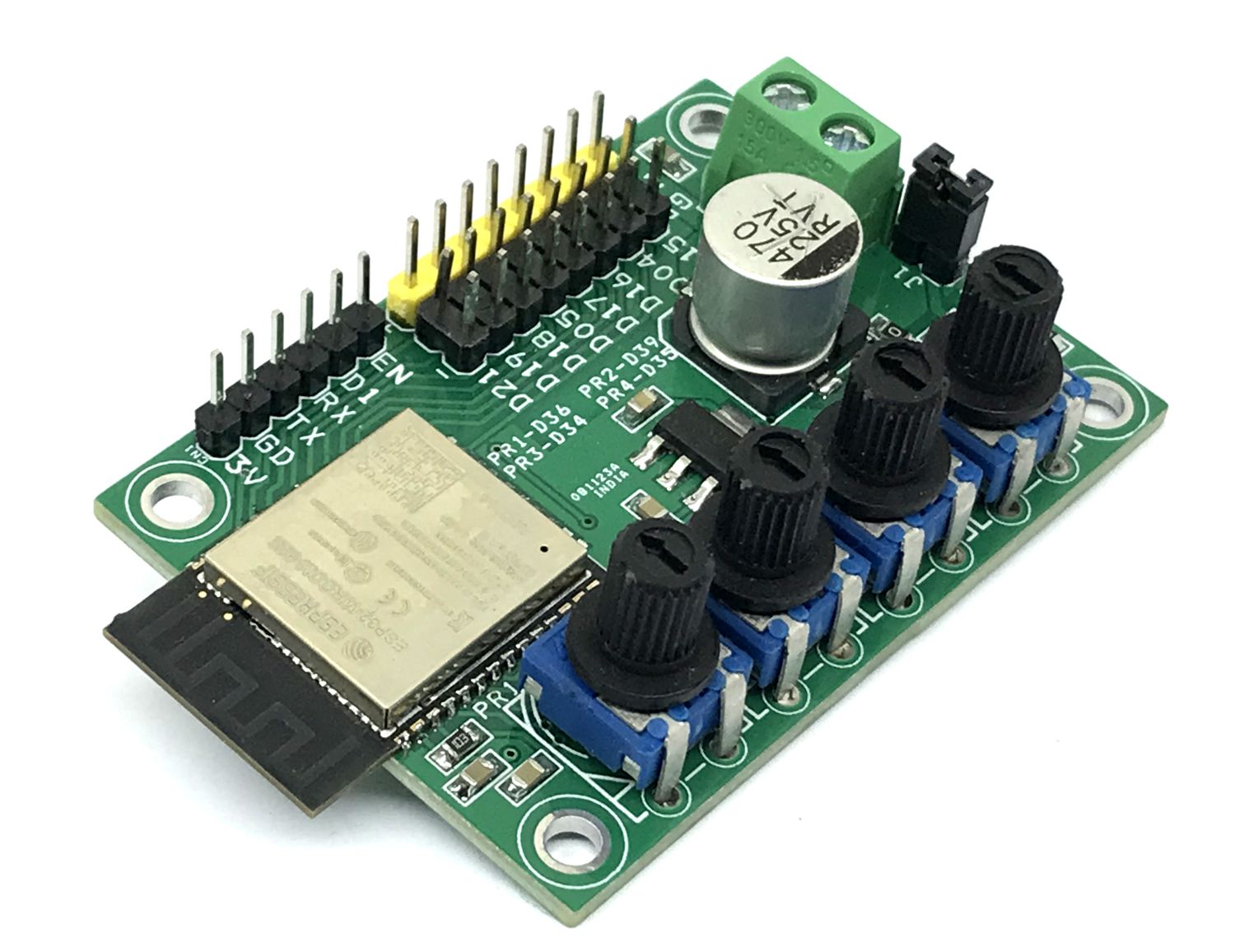

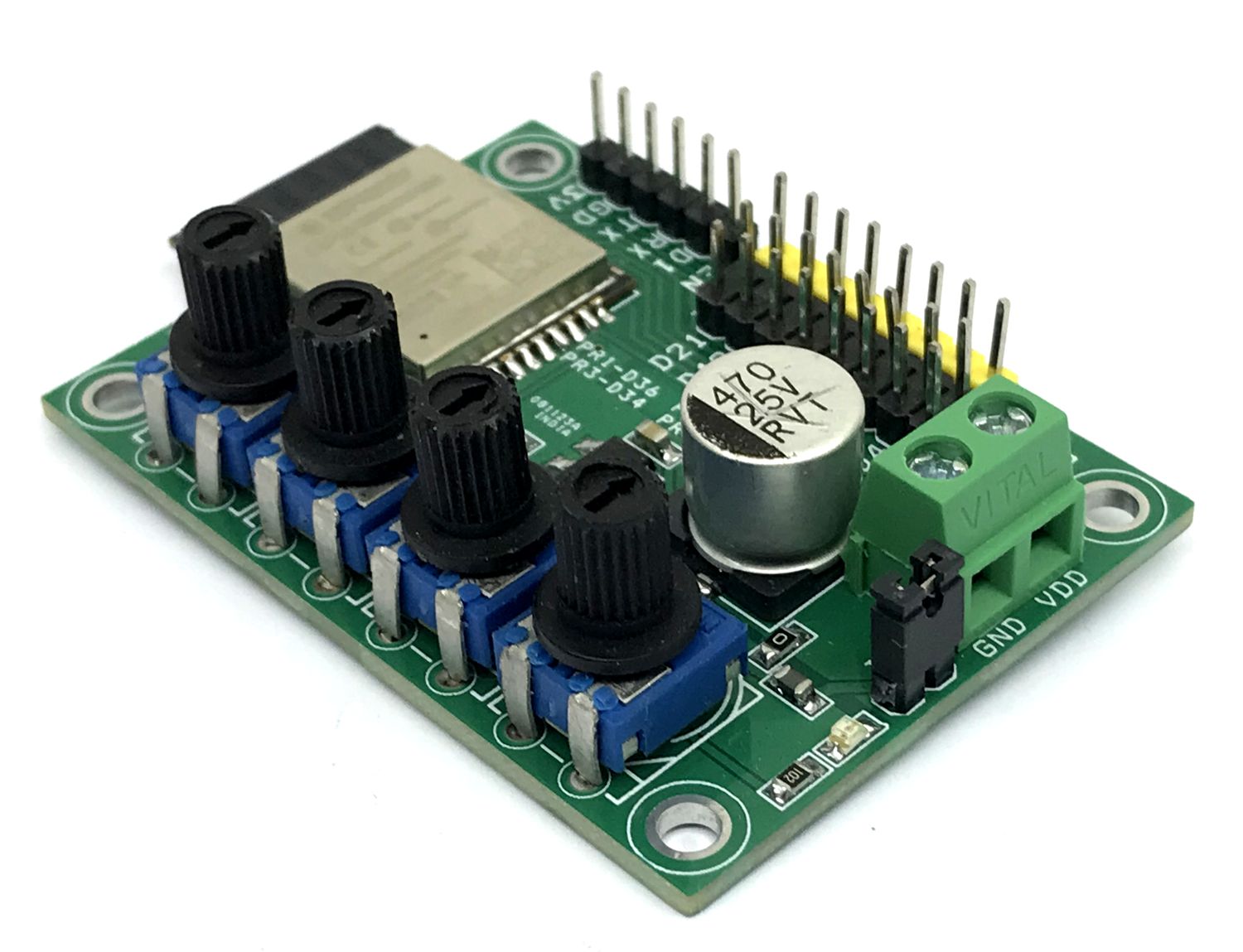

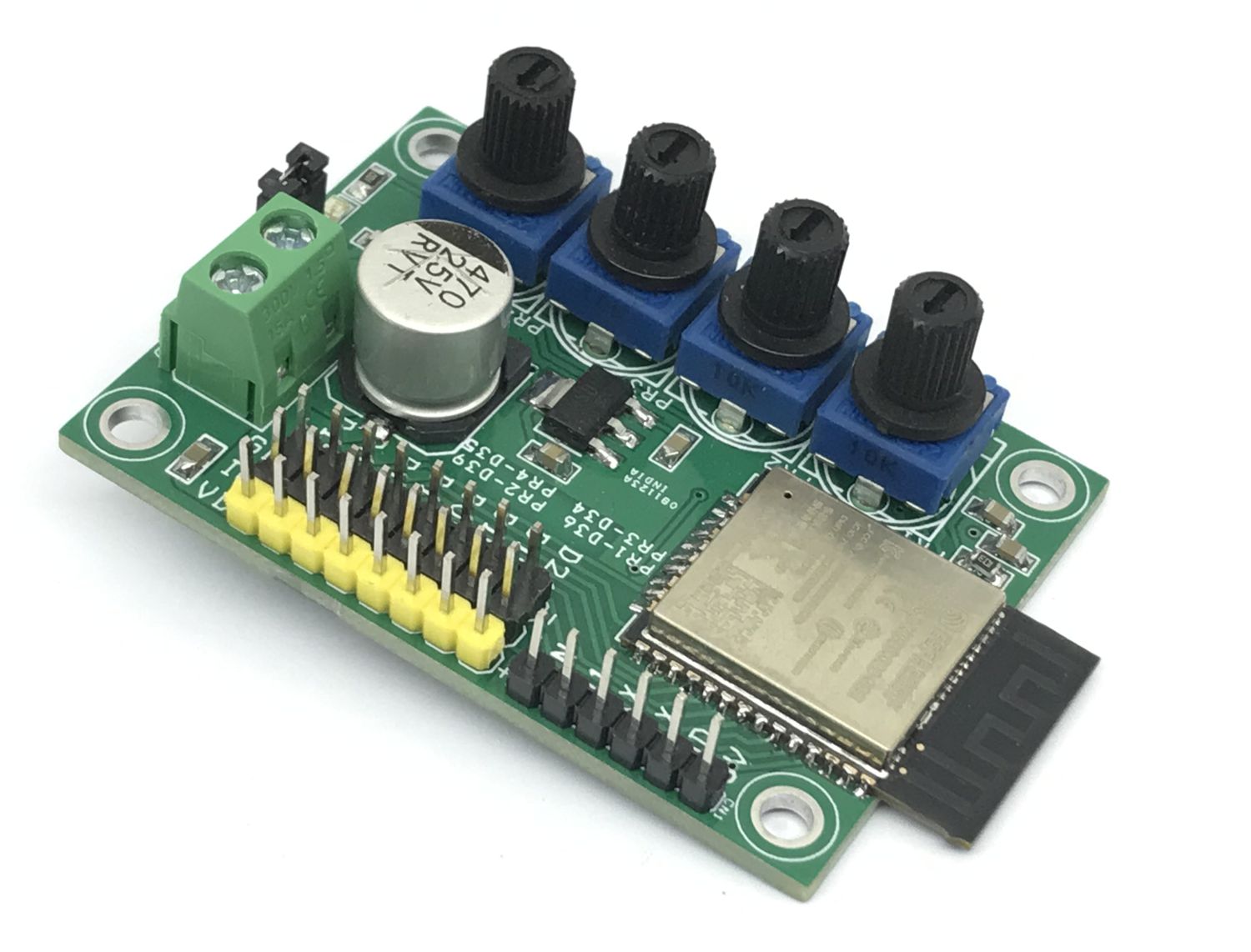

Photos
Video
ESP32-WROOM Datasheet
